Description
- Origin: CN(Origin)
- Place of Origin: Henan, China
- Brand Name: Trikexplor
- Model Number: F326
- Gears: 27 Speed
- Fork Suspension: NO
- Gross Weight: 36KG
- Net Weight: 26KG
- Wheel Size: 26"
- Frame Material: Aluminum alloy
- Braking System: Disc Brake
- Frame Type: Hard Frame (Non-rear Damper)
- Pedal Type: Ordinary Pedal
- Length (m): Other
- Load Capacity: 125KG
- Frame: Aluminum alloy 6061 T6
- Tyres: 26×4.8"
Product Description
F326 is with Go-Anywhere Capability
It is designed for relaxing at the beach, having fun in the snow, sand, mud and seeking excitement on rough tails.
Full Fat 26×4.8” tires
The large volume low pressure tires act as shock absorbers, provide substantial comfort and fun on the rugged terrains.
Fat Trike
|
Technical Data
|
|
Components
|
|
||
|
Overall width
|
98 cm
|
Frame
|
Aluminum 6061 T6
|
||
|
Overall height
|
85 cm
|
Seat
|
TrikExplor Ergo-mesh seat
|
||
|
Overall length
|
197.6-217.6 cm
|
Tires
|
26×4.8″
|
||
|
Track width
|
87 cm
|
Front brakes
|
Avid BB7 mountain mechanical disc brake
|
||
|
Wheel base
|
135 cm
|
Rear brake
|
Avid BB7 mountain mechanical disc brake
|
||
|
Ground clearance
|
25 cm
|
Brake levers
|
Avid FR-5
|
||
|
Bottom seat height
|
34 cm
|
Shifter
|
Shimano Alivio SL-M4000 3×9-speed
|
||
|
Seat width
|
37 cm
|
Front derailleur
|
Shimano Sora FD-3503-B
|
||
|
Seat depth
|
25 cm
|
Rear derailleur
|
Shimano Alivio RD-M4000 9-speed
|
||
|
Seat angle
|
30°
|
Crankset
|
Shimano Alivio FC-M4050 40-30-22T
|
||
|
Turning circle
|
4.32 m
|
Cassette
|
Shimano CS-HG400-9 9-speed 11-32T
|
||
|
Weight
|
25 kg
|
Chain
|
Shimano CN-HG73 9-speed
|
||
|
Wheel size
|
26″
|
Option 1
|
|
||
|
Max. load
|
125 kg
|
Motor
|
Bafang 48v 500w mid motor
|
||
|
Rider height
|
165-200 cm
|
Battery
|
48v 14.5Ah lithium battery with Panasonic cells
|
||
|
|
|
Display
|
Bafang LCD display
|
||
|
|
|
Crankset
|
Bafang 48T with torque sensor pedal assist
|
||
Detailed Images
Shimano Alivio FC-M4050 40-30-22T Crankset

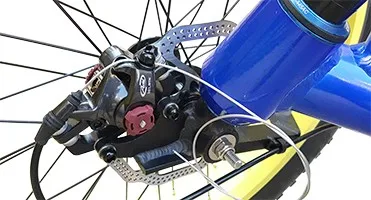

Avid BB7 Mountain Mechanical Disc Brakes
Shimano Alivio SL-M4000 3×9-speed Shifter
TrikExplor Ergo-mesh Seat
